Description

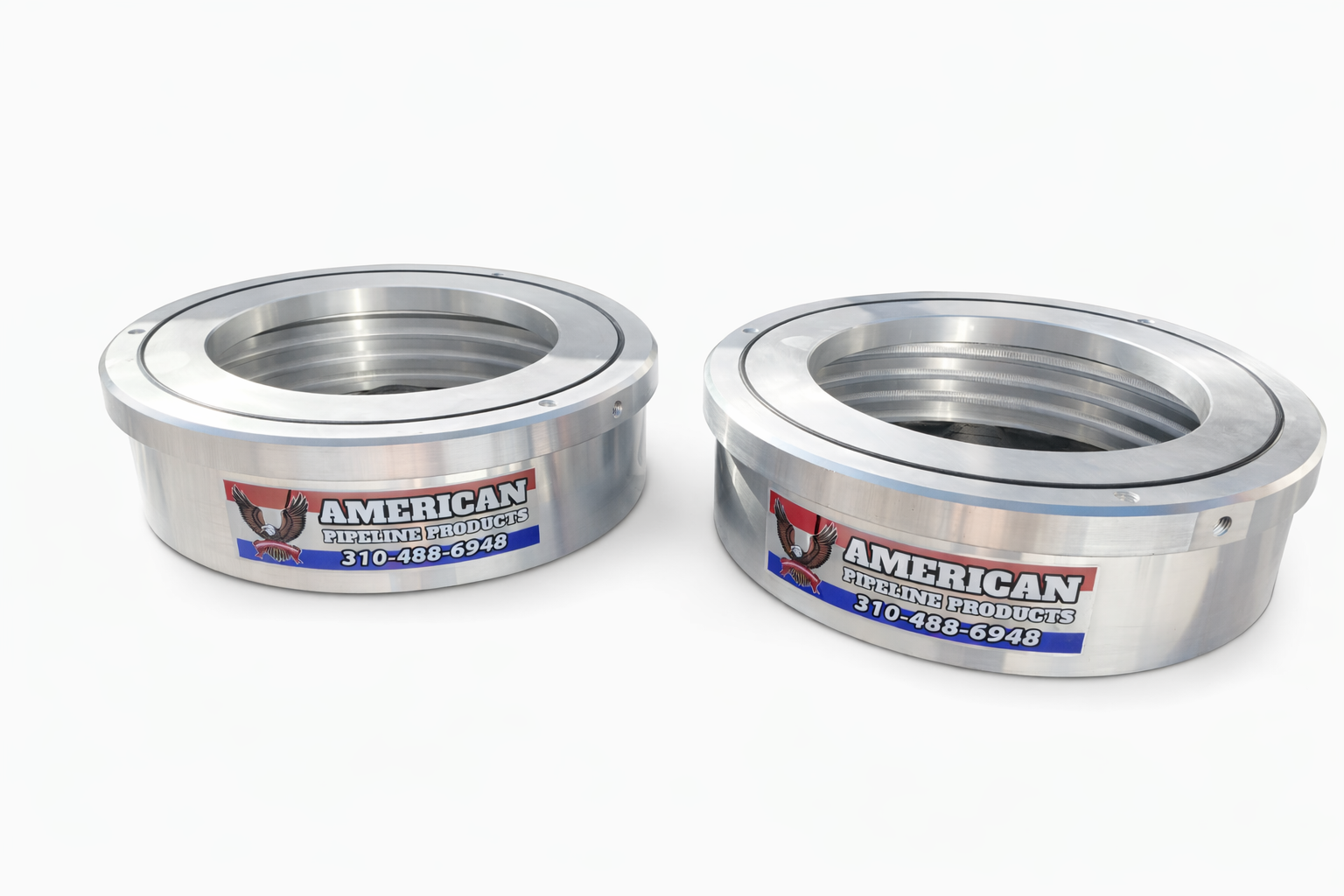

The 16-inch FIG 500R ACME x 16-inch Air Mover Adapter is precision-machined from high-strength 6061 aluminum to provide a secure, heavy-duty connection between standard 16-inch FIG 500R blow-off connections and 16-inch venturi-style air movers. Engineered for maximum airflow and extreme field conditions, this adapter delivers powerful, controlled ventilation for large-diameter pipeline operations where performance and safety are critical.
Key Features
- 6061 Aluminum Construction – High-strength, lightweight, and corrosion-resistant for demanding environments
- Heavy-Duty Mechanical Fit – Eliminates unsafe attachment methods such as straps or tape
- Leak-Resistant Seal – Maintains consistent airflow and reduces risk of air intrusion
- Maximum Airflow Capacity – Designed for large-diameter pipelines requiring high-volume ventilation
- Integrated Handling Option – Available with heavy-duty handle system for safe transport and positioning
- Standard Compatibility – Fits 16″ FIG 500R ACME connections and 16″ venturi-style air movers
- Field-Proven Design – Built by a pipeline operator for real-world applications
- Intrinsically Safer Material Choice – Non-ferrous construction suited for hazardous environments
Applications
- Extra large-diameter pipeline hot cuts
- Major tie-ins and weld repairs
- High-volume blowdowns and controlled venting
- Compressor station and large facility maintenance operations
Specifications
- Pipeline Connection: 16″ FIG 500R ACME
- Air Mover Connection: 16″ Venturi-Style
- Material: 6061 Aluminum
- Finish: Machined / Optional anodized
- Sealing Method: Integrated O-ring groove with compression seal
- Hardware: Stainless steel fasteners
- Optional Feature: Integrated heavy-duty handle system (+$600 option)
Lead Time
Typically 6–8 weeks depending on order volume and configuration
Typically 6–8 weeks depending on order volume and configuration
Important Notice
This product is designed for temporary use during controlled pipeline operations only. Always follow company procedures, applicable safety standards, and proper gas monitoring practices when in use.
