Description

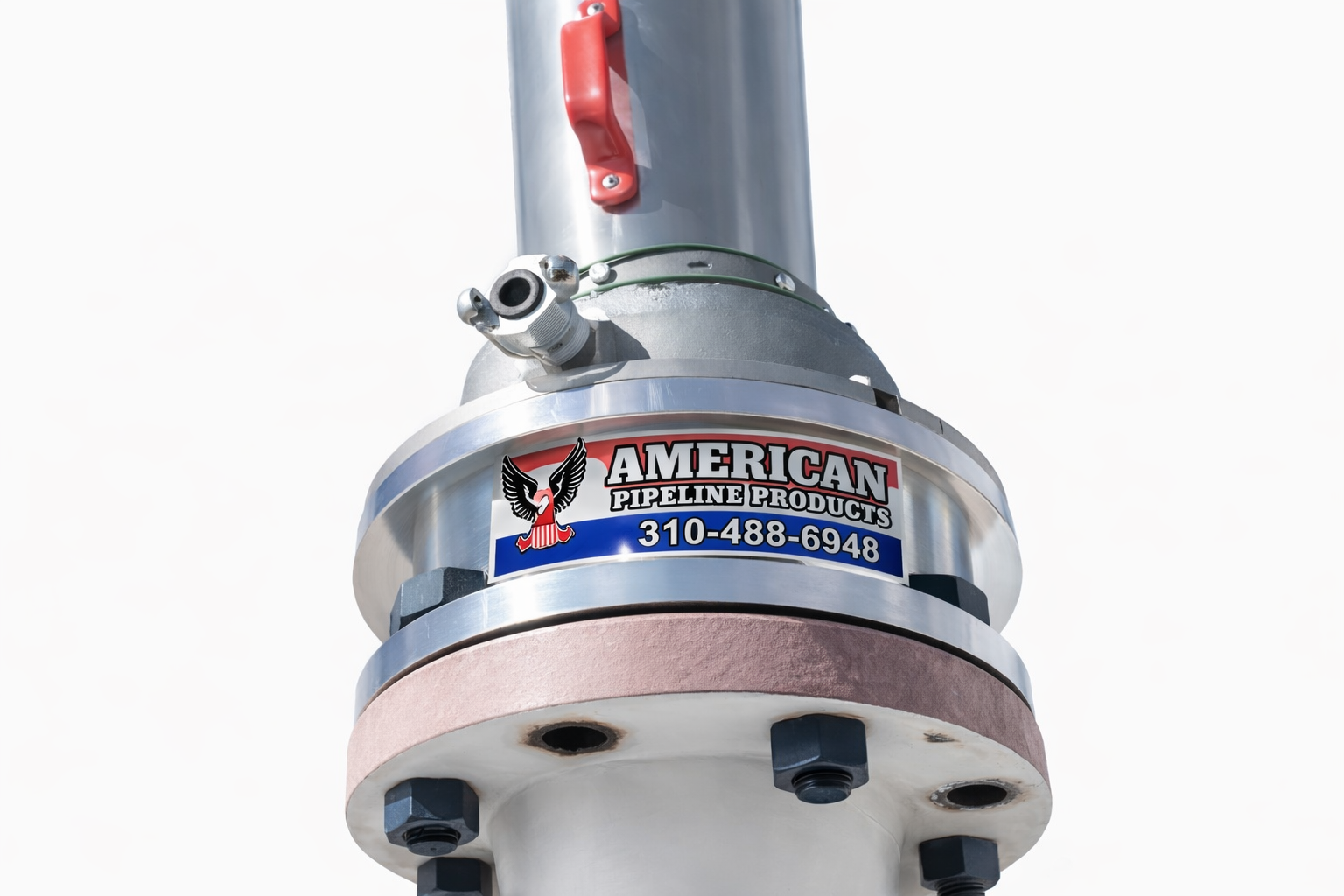

The 16-inch Class 600 Flange x 16-inch Air Mover Adapter is precision-machined from high-strength 6061 aluminum to provide a secure, heavy-duty connection between standard 16-inch Class 600 (Series 600) flanged blow-off connections and 16-inch venturi-style air movers. Engineered for maximum airflow and extreme field conditions, this adapter delivers powerful, controlled ventilation for large-diameter pipeline operations where safety and performance are critical.
Key Features
- 6061 Aluminum Construction – High-strength, lightweight, and corrosion-resistant for demanding environments
- Class 600 Flange Compatibility – Designed to match standard ASME B16.5 / Series 600 bolt patterns
- 16-Bolt Flange Pattern – Provides maximum strength and secure mounting for large diameter connections
- O-Ring Compression Seal – Prevents air intrusion and maintains consistent, controlled airflow
- Maximum Airflow Capacity – Designed for large-diameter pipelines requiring high-volume ventilation
- Secure Mechanical Fit – Eliminates unsafe attachment methods such as straps or tape
- Field-Proven Design – Built by a pipeline operator for real-world applications
- Intrinsically Safer Material Choice – Non-ferrous construction suited for hazardous environments
Applications
- Extra large-diameter pipeline hot cuts
- Major tie-ins and weld repairs
- High-volume blowdowns and controlled venting
- Large-scale compressor station and facility maintenance operations
Specifications
- Pipeline Connection: 16″ Class 600 Flange (ASME B16.5 / Series 600)
- Bolt Pattern: 16-Bolt Configuration (standard Class 600 spacing)
- Air Mover Connection: 16″ Venturi-Style
- Material: 6061 Aluminum
- Sealing Method: Integrated O-ring groove with compression seal
- Hardware: Stainless steel bolts
Lead Time
Typically 6–8 weeks depending on order volume and configuration
Typically 6–8 weeks depending on order volume and configuration
Important Notice
This product is designed for temporary use during controlled pipeline operations only. Always follow company procedures, applicable safety standards, and proper gas monitoring practices when in use.
